Description

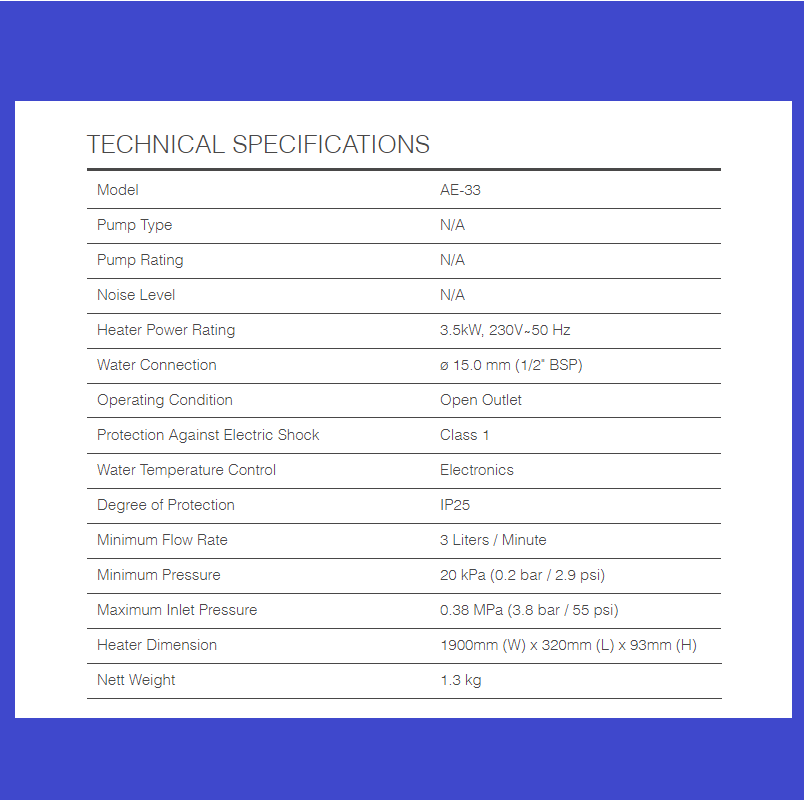

TECHNICAL SPECIFICATIONS | |
---|---|

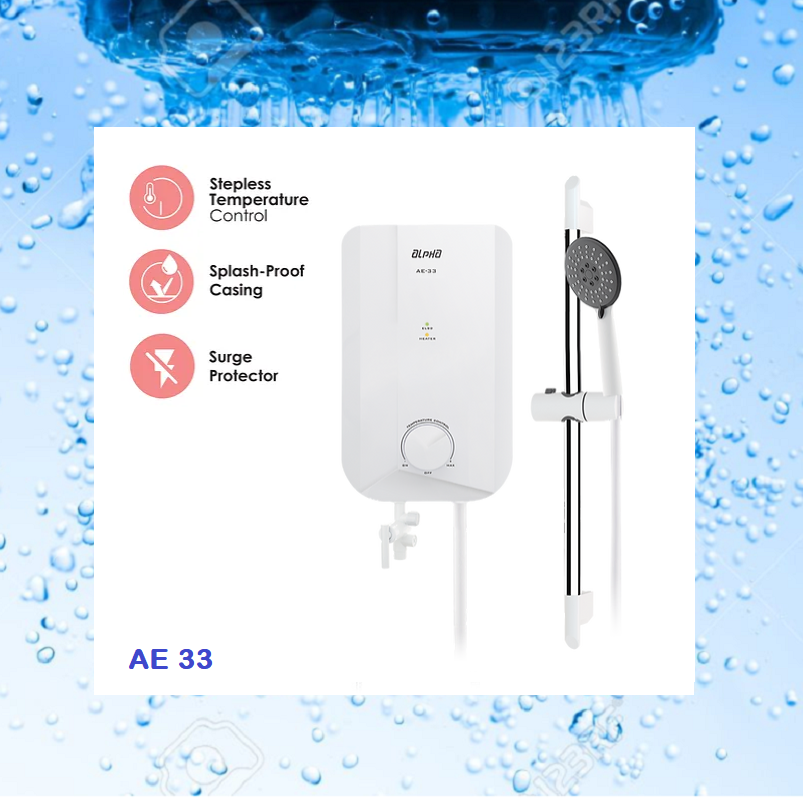

Model | AE-33 |
Pump Type | N/A |
Pump Rating | N/A |
Noise Level | N/A |
Heater Power Rating | 3.5kW, 230V ̴ 50 Hz |
Water Connection | ø 15.0 mm (1/2" BSP) |
Operating Condition | Open Outlet |
Protection Against Electric Shock | Class 1 |
Water Temperature Control | Electronics |
Degree of Protection | IP25 |
Minimum Flow Rate | 3 Liters / Minute |
Minimum Pressure | 20 kPa (0.2 bar / 2.9 psi) |
Maximum Inlet Pressure | 0.38 MPa (3.8 bar / 55 psi) |
Heater Dimension | 1900mm (W) x 320mm (L) x 93mm (H) |
Nett Weight | 1.3 kg |
